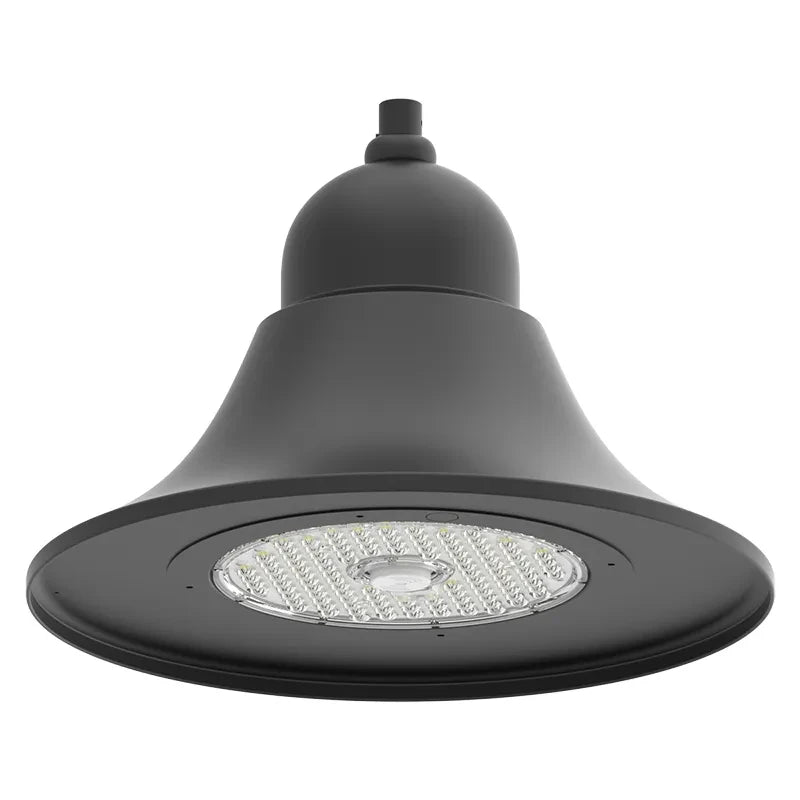

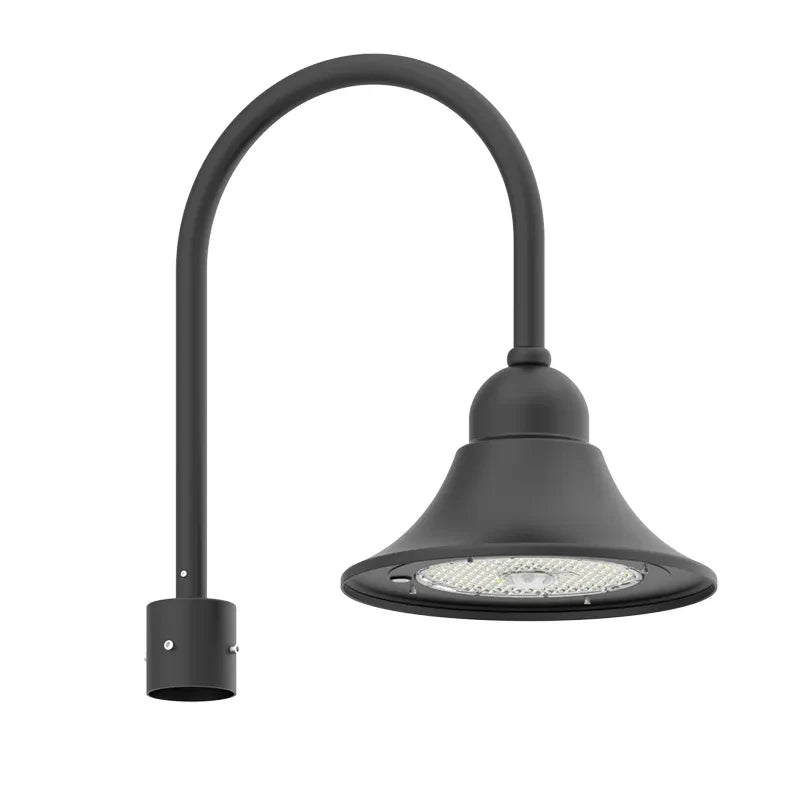

Westgate 120V/277V LED DAB Series 80W-150W Designer Area Bell Light

Name: Westgate 120V/277V LED DAB Series 80W-150W Designer Area Bell Light
Brand: Westgate
SKU: DAB-B23-80-150W-MCTP-SR
Price: 450.74 USD
Availability: InStock

SKU DAB-B23-80-150W-MCTP-SR

$450.74

Quantity

Request a Quote

In stock — most orders ship within 1–2 business days

Free shipping $100+
30-day returns
Ships from stock

Talk to an expert - Chat with us · 888-545-4837

Trade pricing available - Apply

Overview

The DAB Series Designer LED Area Bell Light System delivers stylish, reliable illumination for landscapes, pathways, walkways, plazas, and commercial outdoor spaces. Featuring a B23 size and a flexible 80W–150W selectable power range, this decorative LED area light provides versatile performance for a variety of outdoor lighting applications. Its distinctive bell-inspired design adds an architectural touch while delivering bright, uniform illumination, making the DAB Series an ideal solution for enhancing visibility, safety, and the overall appearance of outdoor environments.

Features

Voltage: Either 120V/277V
Wattage: 80W/100W/150W
Lumens: 19500Lm
Color Temperature: Adjustable: 3000K/4000K/5000K
CRI: 70+
Dimming: 0~10V Dimmable
Location Rating: Wet Locations
Life Expectancy: 70,000 Hrs
Warranty: 7 Years
Beam Angle: Type III
LED: Lumileds 2835
Light Includes: AL 1060 aluminum housing, outdoor powder coating; DC button photocell with ON/OFF switch; photocell included (with disconnect switch); multi CCT and power, selectable switch inside of the fixture; high light transmittance PC lens, anti-UV and fire resistant; 6’ SJTW 18/3 AWG power cable, 6’ SJTW dimming cable.
Aluminum LED board: high conductive, waterproof, aging resistance, salt resistance
Twist-lock zhaga socket pre-installed. (see motion sensor accessories)
Programmable bi-level motion sensor & emergency backup options.
Ideal for garden, amusement park, residential quarter, industrial park and pedestrian street.
