Overview

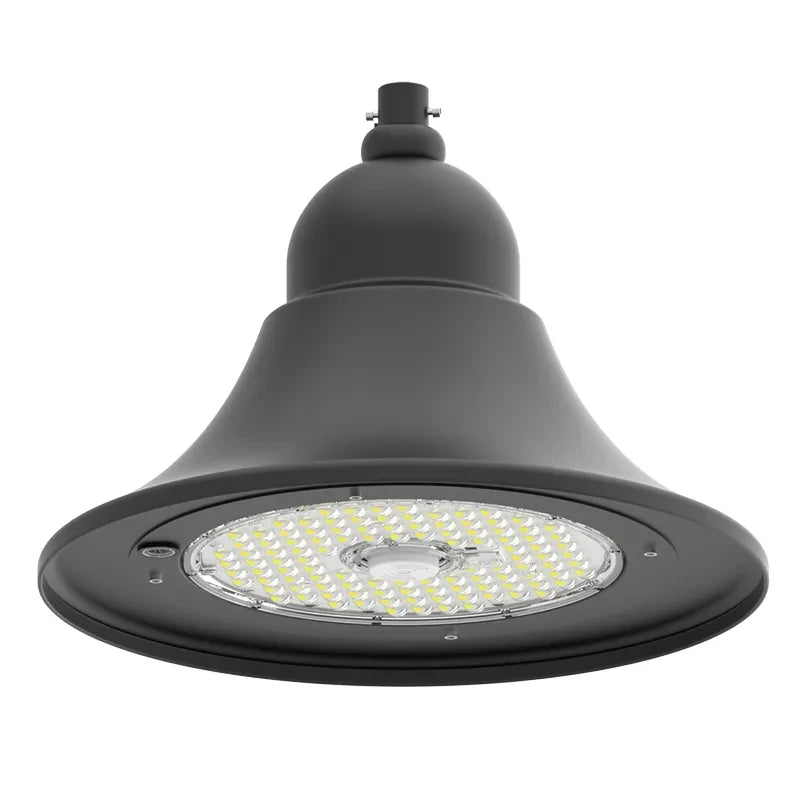

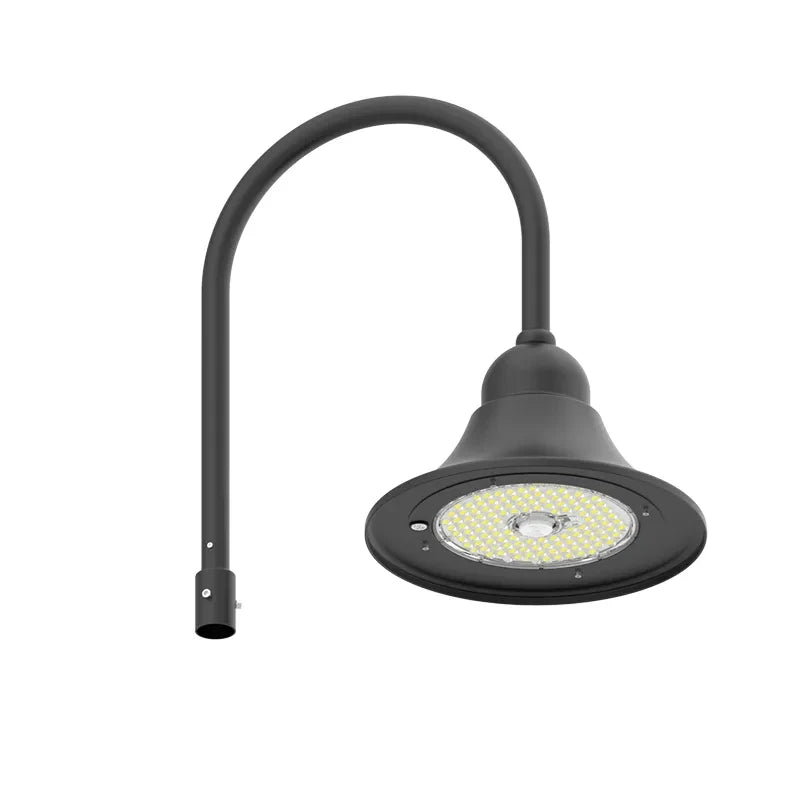

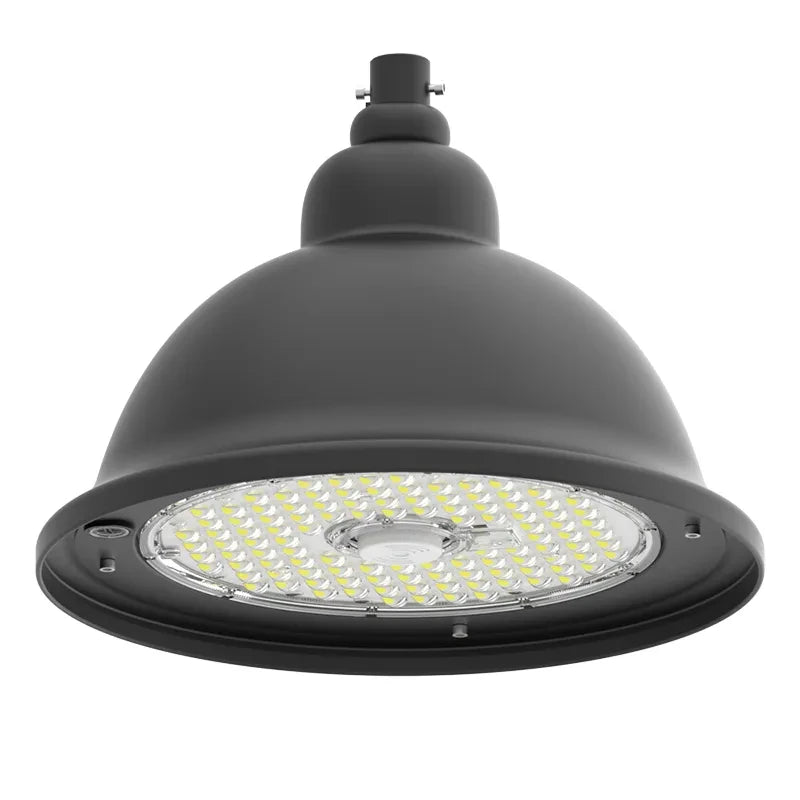

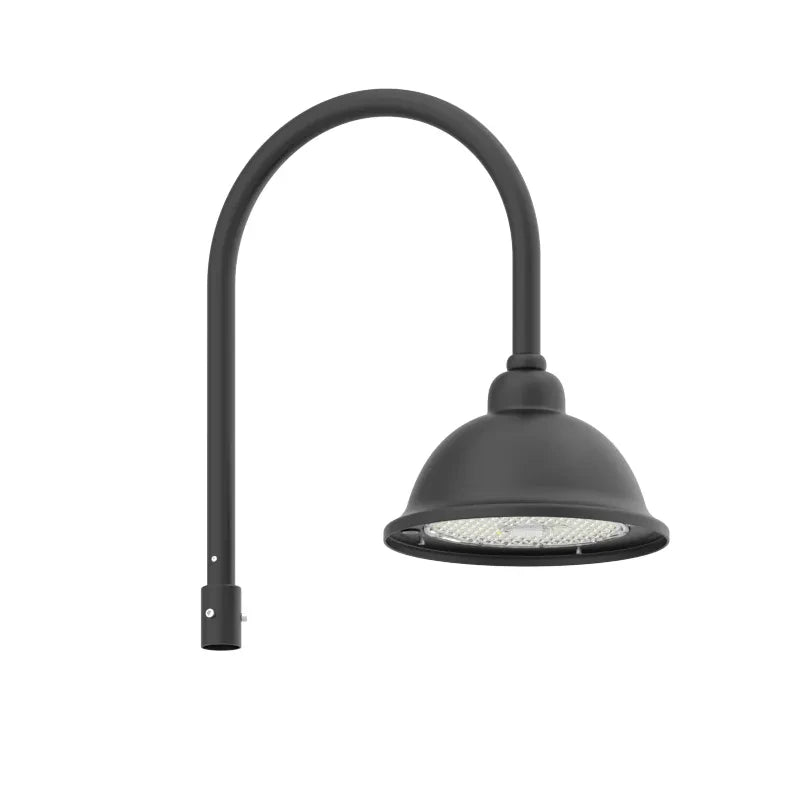

The DAB Series Designer LED Area Bell Light System combines distinctive architectural styling with efficient outdoor illumination, making it an ideal choice for landscapes, pathways, walkways, plazas, and commercial outdoor spaces. Available in A16 and B20 sizes, the DAB Series features a versatile 50W–100W selectable power range for flexible lighting performance across different applications. Its decorative bell-style design adds visual appeal while providing reliable, uniform illumination, making it a practical and stylish solution for enhancing outdoor environments.

Features

Voltage: Either 120V/277V
Wattage: 50W/80W/100W
Lumens: 13000Lm
Color Temperature: Adjustable: 3000K/4000K/5000K
CRI: 70+
Dimming: 0~10V Dimmable
Location Rating: Wet Locations
Life Expectancy: 70,000 Hrs
Warranty: 7 Years
Beam Angle: Type III
LED: Lumileds 2835
Light Includes: AL 1060 aluminum housing, outdoor powder coating; DC button photocell with ON/OFF switch; multi CCT and power, selectable switch inside of the fixture; high light transmittance PC lens, anti-UV and fire resistant; 6’ SJTW 18/3 AWG power cable, 6’ SJTW dimming cable.
Aluminum LED board: high conductive, waterproof, aging resistance, salt resistance
Twist-lock zhaga socket pre-installed. (see motion sensor accessories)
Programmable bi-level motion sensor & emergency backup options.
Ideal for garden, amusement park, residential quarter, industrial park and pedestrian street.
