Overview
The RAB High-Voltage Post-Top LED delivers a modern, energy-efficient substitute for traditional high-pressure sodium and metal halide lamps. With its integral driver, it bypasses external ballasts and wires straight to line voltage (277–480 V), while offering field-selectable color temperatures (3000 K / 4000 K / 5000 K) and exceptional lumen output. Featuring a 360° beam spread, built-in 4 kV surge protection, and IP64-rated construction for reliable performance in damp or enclosed fixtures, it’s ideal for demanding outdoor installations. Backed by a stringent 5-year warranty covering light output, color stability, and driver performance, this fixture represents both durability and flexibility for modern lighting applications.
Features
- Voltage: 277/480V

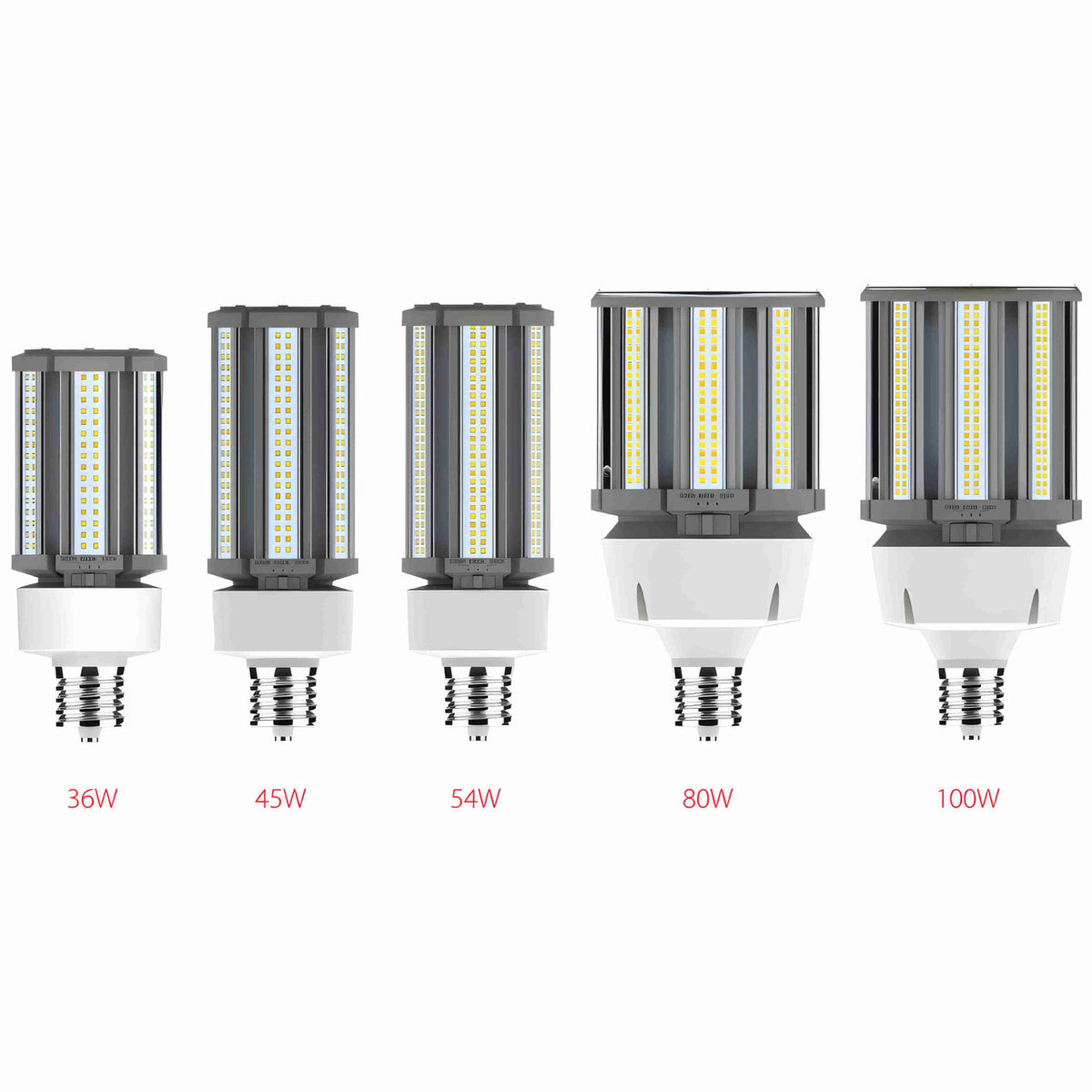

- Wattage/Lumens: Either
- 36W = 4,860Lm
- 45W = 6,075Lm
- 54W = 7,290Lm
- 80W = 10,800Lm
- 100W = 13,500Lm
- Color Temperature: Adjustable: 3000K, 4000K, 5000K
- CRI: 80+
- Location Rating: Damp Locations
- Lifetime: 50,000 Hrs.
- Beam Angle: 360°
- Base Type: EX39 Exclusionary Mogul
- Replacement for traditional high-voltage MH or HPS lamps
- Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast

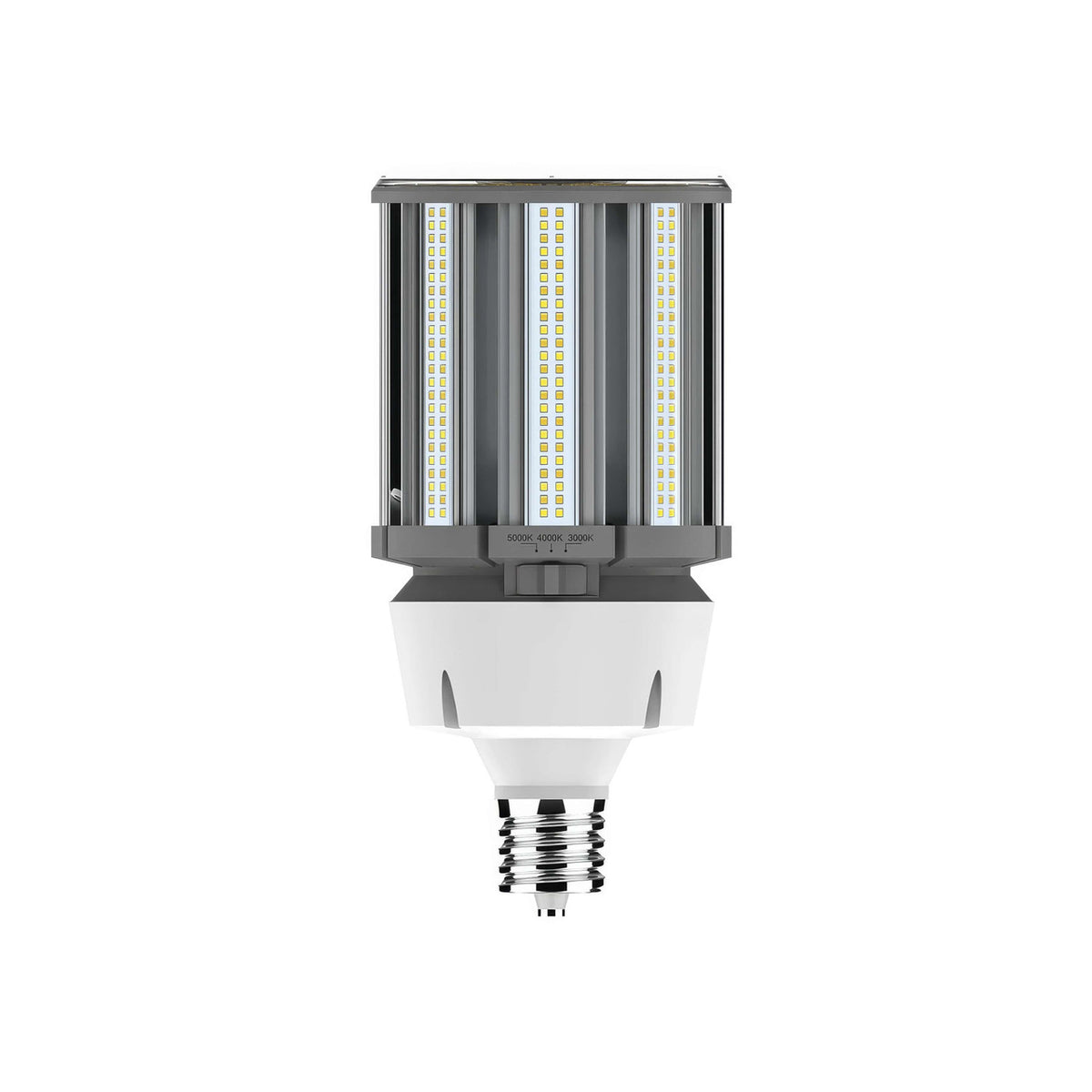

- Adjustable CCT allows for in-field customization
- 5-Year, No-Compromise Warranty
Specifications
Item details
- SKU
- UPC
Electrical
- Voltage
- 277-480V
Light output
- Color temperature
- Adjustable: 3000K - 5000K
- CRI
- 80+
Ratings & warranty
- Rating
- Damp Locations
- Life expectancy
- 50,000 Hrs.
Documents
